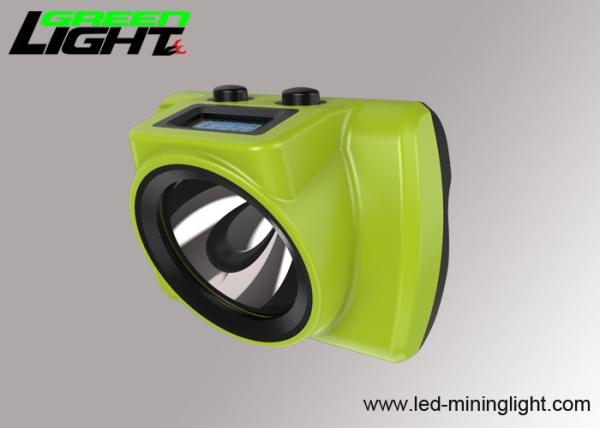

GLC-6S led mining light with 20000LUX strong brightness and IP68 water-proof.
Main Features of GLC-6S miner cap lamp
- 20000lux high light
- 15000lux work light
- auxiliary light for back up usage
- SOS (ask for help if any emergency)
- 6.8Ah Panasic battery pack (long time usage)
- Li-ion battery with automatic electrical protection
- Over-discharging, over-charging protection
- Update generation on the basis of GLC-6 according to cusomers feedback
- More handy switch (convenient to touch and push)
- USB Charger or Cradle charger up to your options
- Customized charger rack
- OLED screen to display time, battery capacity status and other info
- Ultrasonic waterproof processing
- High intensity engineering plastic
- Anti-Static Durable Housing
- Detachable structure "use again"
- Spare Parts Available
Datasheet of other series of rechargeable IP68 cordless mining lamps:
| Item | GLC-6(S) | GLC-6(B) | GLC-6(C) | GLC-6(D) | GLC-6(E) |
| Light source | 1MA and 2AL | 1MA and 2AL | 1MA and 2AL | 1MA and 2AL | 1MA and 2AL |
| Battery capacity | 6.8Ah | 6.8Ah | 2.6Ah | 3.4Ah | 5.2Ah |
| Rated voltage | 3.7V | 3.7V | 3.7V | 3.7V | 3.7V |
| Power of main light | 2.96W | 2.22W | 1.3W | 1.3W | 1.3W |
| Brightness of ML | 20000lux | 13000lux | 4000lux | 6000lux | 10000-12000lux |
| Illuminous of ML | 385lum | 222lum | 130lum | 130lum | 130lum |
| OLED screen | yes | yes | no | no | no |
| Working time | 13hours | 15hours | 13hours | 13-15hours | 15-18hours |
| Life span of light source | 100000hours | 100000hours | 100000hours | 100000hours | 100000hours |
| Battery cycles | 1200 | 1200 | 1200 | 1200 | 1200 |
| Charging time | 4hours | 4hours | 4hours | 4hours | 4hours |
| Weight | 245g | 245g | 190g | 190g | 245g |
| Ingress protection | IP68 | IP68 | IP68 | IP68 | IP68 |
| Certificate | CE, Atex | CE, Atex | CE, Atex | CE, Atex | CE, Atex |
Other new design:
We design newly corded/cordless cap lamp that is based on GLC-6 according to customers' feedback.
NFC can be added for the purpose of punching attendance records.
Can plant tracking system into this caplamp.
We are researching and developing RFID system into cap lamp. It is a trend for underground mines.
About us Green Lighting Technology:
We are dedicated to led underground mine lights since 2006.
We have engineer of appearance, function, new design,drawing.
Strict Controlled quality from raw material to finished products.
OEM/ODM Service.
Trial Order available.
Customization service according to customers' feedback and requirement.
We have long term cooperations with South africa and Canada customers (who can planted tracking system to cap lamp).
High safety cap lamp is a trend.
We are researching and developing RFID/NFC to plant into cap lamp to real time tracking.
Welcome to our factory to visit.
Products Appearance
Our Service
01 ODM
GLT with an experienced R&D team, GLT provides product design, manufacture, maintenance and
technical support.
02 Installation Assistance
GLT offer installation guide to assist the clients to install the complicated projects.
03 Connection Diagram
Detailed CAD connection drawing including power, control, and wiring provided upon your request.
04 Customization Strip Light length
customized with IP68 protection rating. Even, we can customize wire length, label, package, laser printing, CRI, McAdam, R9 and etc.
05 GLT provides quick and strong technical support and after-sales service.
06 Quick Delivery Time
The delivery for standard products varies from 10-28 days. GLT also provides some hot-selling in-Stock items for some urgent project needs.
